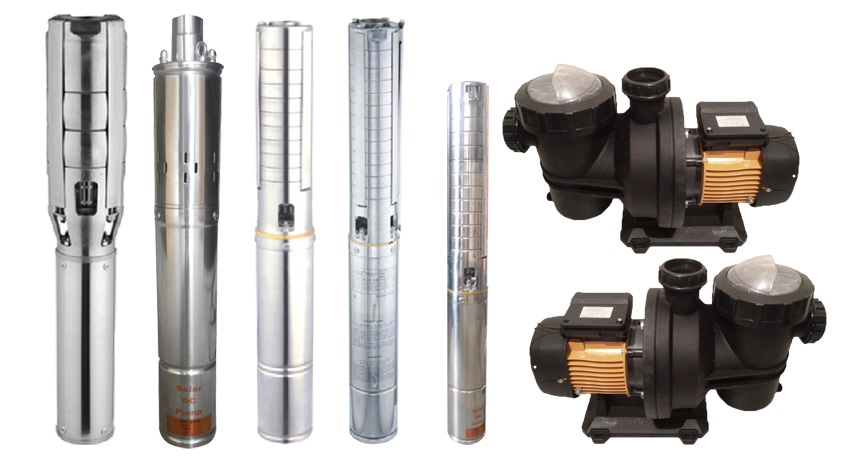

3inch Subermersible pump
Series No:3inchM.O.Q:50sets
Payment:T/T, L/C, Paypal
Warranty:1years
Feature of Pump
Technology: New generation technology, high speed motor
Rotation: 0 to 7200 frequency change, Synchronous constant speed
Power source: DC and Solar power
Pump motor: Permanent magnetBrushlessDChigh speed and synchronous motor
Frequency: Synchronous and DC frequency change
Motor efficiency: 83-92%
Unit efficiency: 2%-5% higher than the GB
Functionality: Multifunctional and no limit, automatic protection
Shell material: Q304 stainless steel, better than normal Q201.
Warranty: 3year for pump, 1year for the pump controller
|
Series No. |
Head(M) |
Flow rate(m3/h) |
Size |
Pump Length |
Pump Impeller |
Pump |
Solar panel |
Packing |
|||||||
|
Rated |
Max |
Rated |
Max |
Outer |
Outlet |
Power |
Voltage |
Power |
Voltage |
Quan. |
Volume |
Weight |
|||
|
3SWP-20-0.8(M) |
20.0 |
30.0 |
0.8 |
1.0 |
76mm(3") |
19mm(0.75") |
460mm |
Screw |
80W |
24V DC |
200W |
36V |
1 |
0.20CBM |
41.9KG |
|
3SWP-30-1.0(M) |
30.0 |
50.0 |
1.0 |
1.3 |
140W |
24V DC |
200W |
36V |
1 |
0.23CBM |
44.1KG |
||||
|
3SWP-40-1.1(M) |
40.0 |
80.0 |
1.1 |
1.3 |
210W |
24V DC |
150W |
18V |
2 |
0.23CBM |
49.2KG |
||||
|
3SWP-50-1.1(M) |
50.0 |
95.0 |
1.1 |
1.5 |
270W |
24V DC |
200W |
36V |
2 |
0.29CBM |
64.1KG |
||||
|
3SWP-60-1.0(M) |
60.0 |
100.0 |
1.1 |
1.5 |
300W |
36V DC |
150W |
18V |
3 |
0.29CBM |
64.1KG |
||||
|
3SWP-70-0.6(M) |
70.0 |
115.0 |
0.6 |
1.5 |
600W |
48V DC |
200W |
36V |
4 |
0.51CBM |
108KG |
||||
|
3SWP-70-1.4(M) |
70.0 |
85.0 |
1.4 |
3.0 |
750W |
48V DC |
300W |
36V |
4 |
0.57CBM |
122KG |
||||
|
3SWP-80-1.4(M) |
80.0 |
120.0 |
1.4 |
2.3 |
1000W |
48V DC |
200W |
36V |
8 |
0.78CBM |
175KG |
||||
|
3SWP-90-1.4(M) |
90.0 |
140.0 |
1.4 |
2.3 |
1300W |
72V DC |
300W |
36V |
6 |
0.88CBM |
197KG |
||||

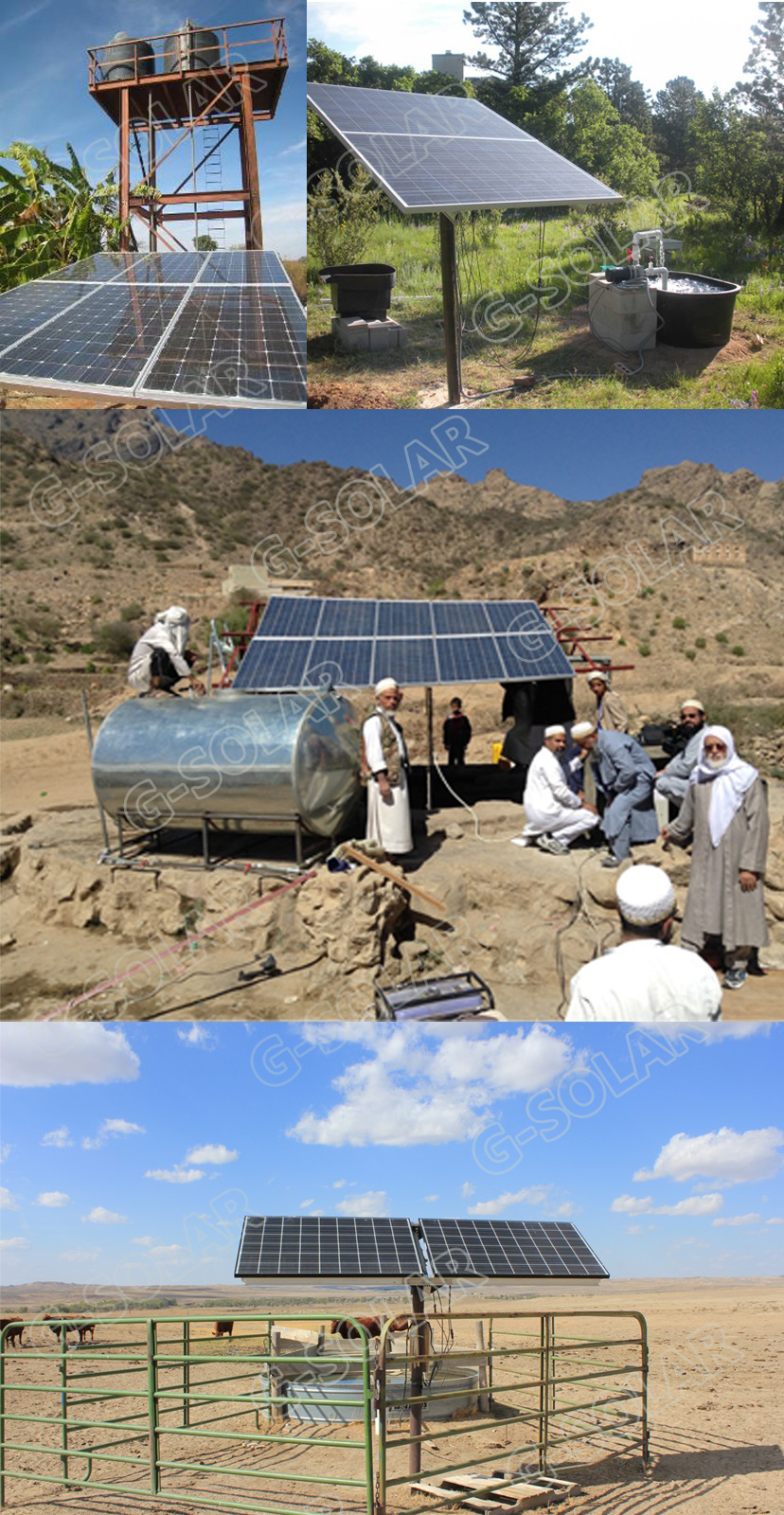

Application:
Download: 3inch Subermersible pump
