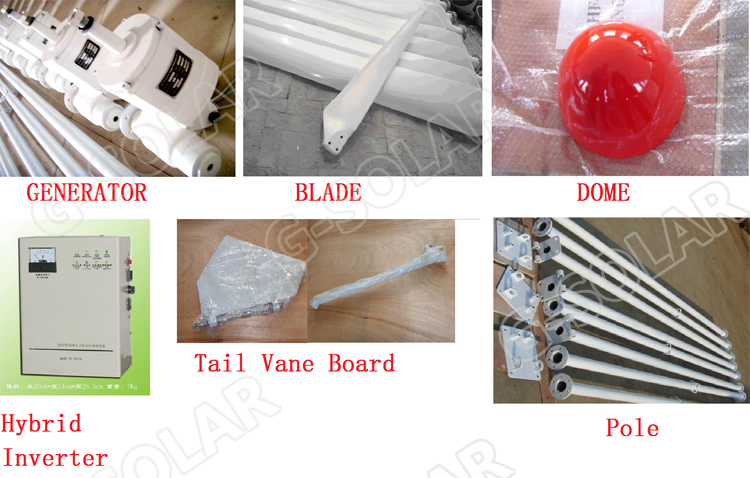

Generator

Type of generator

Rated power

300W

Max power

450W

Rated rotor speed

400(r/m)

Rated Wind speed

8(m/s)

Voltage output

12/24V

Start up wind speed

3(m/s)

Work wind speed

3-25(m/s)

Security wind speed

40(m/s)

Shell Material

Pressure cast iron

Blade

Material of blade

FRP Lay-up by hand

Number of blades

3pcs

Diameter of blade

2.6M

Dome

Material of dome

FRP Lay-up by hand

Number of dome

1pc

Tail Vane Board

Material

Q235 Steel

Surface Treatment

painting and
anticorrosion treatment

Accessories

Base,Wire, Wire tighting tool, Anchors of base
Anchors of Wire, Nut, washer,bolt

Cables

Φ2.5mm12M

Guy WireTower

Height of pole

6M

Diameter of Tower

60mm

Flange size

125x125x8mm

Sections of Tower

2

Material

Q235 Steel

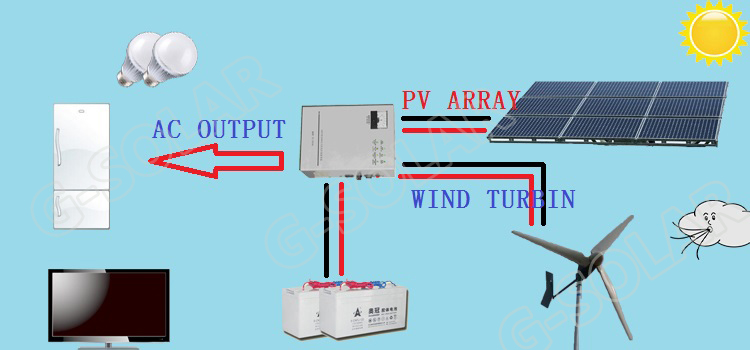

Wind/Solar
Hybrid controller

Rated power of wind turbine

300w

Power of solar panel

100w

Rated power output

300w

Voltage output

AC 210~240(±8%)

Frequency

50/60Hz±2Hz

Voltage of battery

24V

Working Mode

Continuous

Function

Charge and invert

Working temperature

-10~40℃

Humidity

≤80%

Fuse

30A

Stop working voltage

≤18V

Size (cm)

20x14x28.5

Certification

ISO9001    CE   EN60204-1

Warranty

Wind turbine

2years

Wind/Solar Hybrid controller

1year
