Parameter

Specification

Quantity

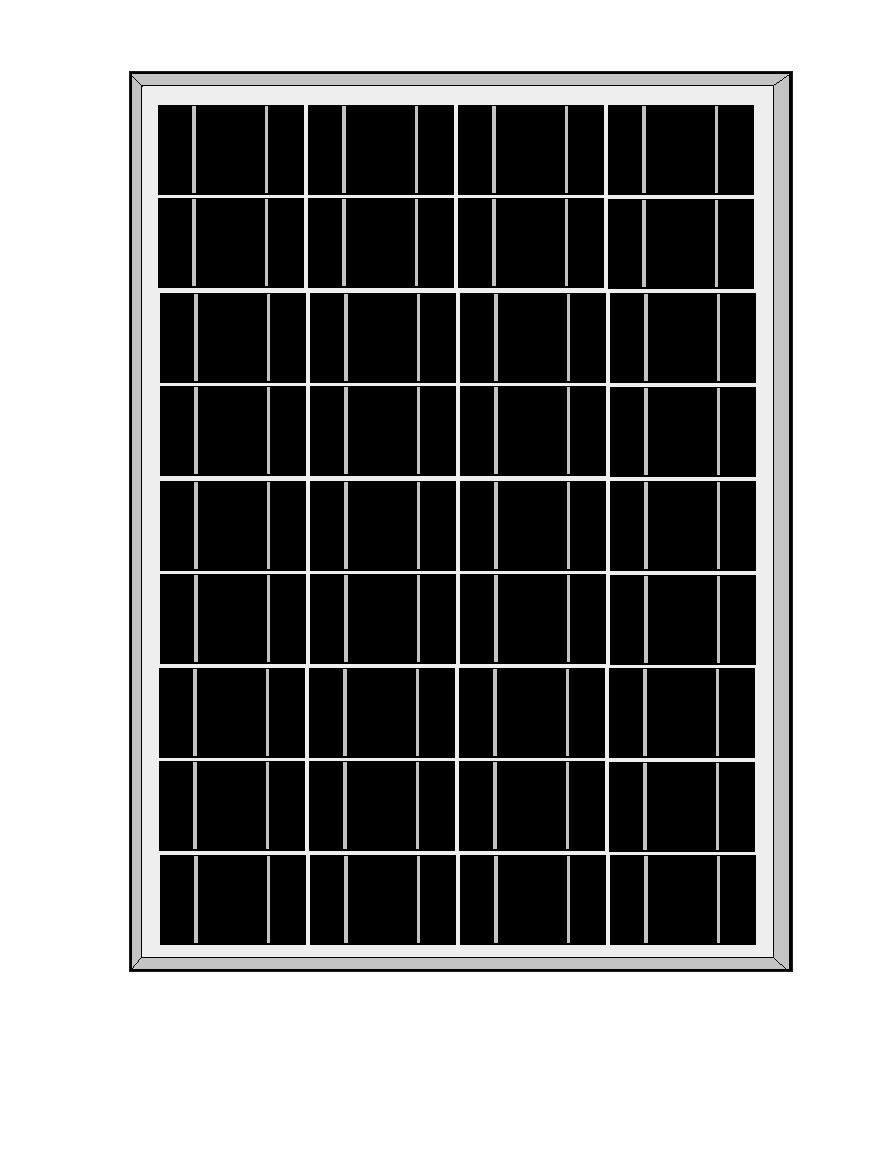

Solar Panel

GSPV-100W(156P)36 ,100W,Poly,1080x670x35mm1.5m㎡,300cm

1

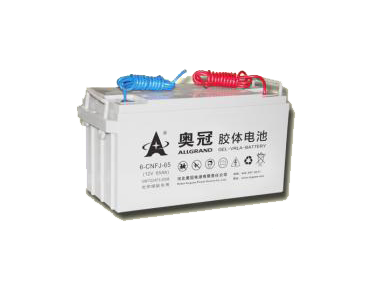

Battery

AOGUAN(6-CNFJ-65), 12V/65Ah GEL

1

Charge Controller

EPEVER (LS1024E) 12V/10A

1

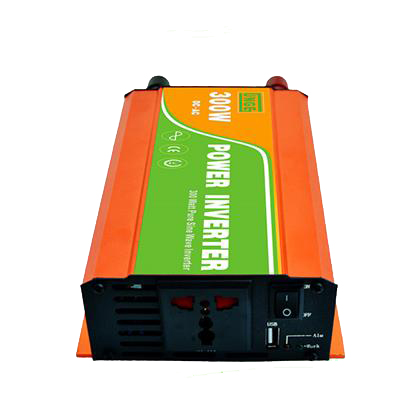

Inverter

300W,Pure sine wave  AC110V/220V/240V,50Hz/60Hz

1

MP3/Radio

FM Radio,MP3 Player with 3w speaker

1

Power Box

Steel box  and lacquer-coated,30x30x30cm

1

Specification

Quantity

OUPUT

5V DC,USB charger

2

110V-240V 50Hz/60Hz, AC

1

INPUT

18V DC

1

Load

Specification

Working time

Power Consumption

Quantity

LED BULB

9w

8hours

216wh

3

Radio/MP3

3W

8hours

24wh

1

Celling Fan

18W

4hours

72wh

1

Components And
Accessories

Specification

Quantity

Solar panel

100W,Poly

1

All-in-one Box

Build-in Controller,Radio/MP3,DC connector

1

Battery

12V 65Ah

1

Wire of battery

2.5m㎡,200cm

1

Wire of panel

1.5m㎡,300cm

1

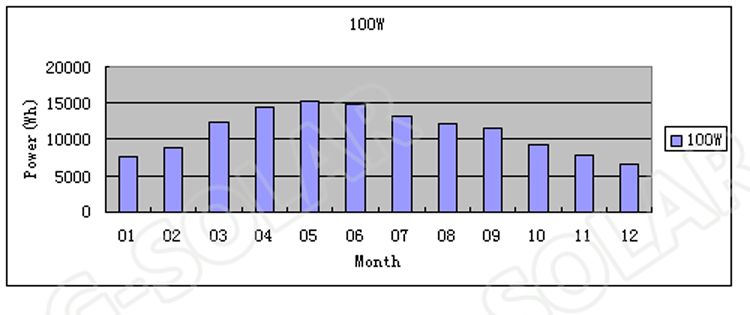

Insulation: 4kwh/m2/day
Power generated per day:320wh
Power consumption per day:312wh
Keep Working days: 2cloudy days
Warranty: 1years for whole set

Grade A quality solar panel
Long work life GEL battery
Portable Metal All-in-one Box
U support on solar panel ,easy to fix anywhere
